Loading Paper in the Cassette

Note

• In the cassette, be sure to load only plain paper.

• You can use general copy paper or Canon Red Label Superior WOP111/Canon Océ Office Colour Paper SAT213.

  For the page size and paper weight you can use for this printer, see Supported Media Types.

1. Prepare paper.

   Align the edges of paper. If paper is curled, flatten it.



   Note

   • Align the edges of paper neatly before loading. Loading paper without aligning the edges may cause paper jams.

   • If paper is curled, hold the curled corners and gently bend them in the opposite direction until the paper becomes completely flat.

     For details on how to flatten curled paper, see Check3 in Paper Is Smudged / Printed Surface Is Scratched.

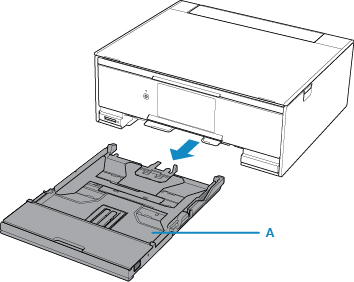

2. Pull out the cassette (A) from the printer.

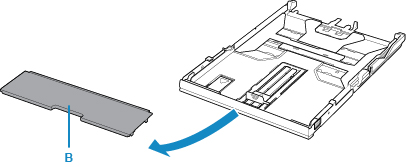

3. Remove the cassette cover (B).



4. Slide the paper guide (C) in front and (D) on the right to open the guides.

5. Load the paper stack WITH THE PRINT SIDE FACING DOWN, and place it in the center of the cassette.



   Important

   • Always load paper in the portrait orientation (E). Loading paper in the landscape orientation (F) can cause paper jams.



   Note

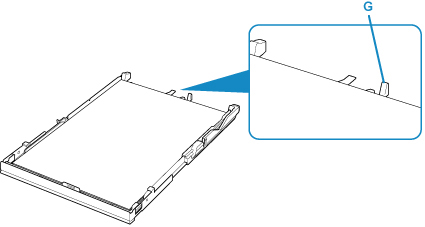

   • Align the paper stack with the edge of the cassette as shown in the figure below.

     If the paper stack is in contact with the protrusion (G), the paper may not be fed properly.

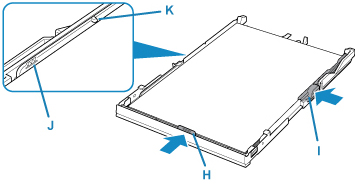

6. Align the paper guide (H) in front with the paper stack.

   Align the paper guide (H) with where it clicks into place.

7. Slide the paper guide (I) on the right to align with the paper stack.

   Do not slide the paper guide too hard against the paper. The paper may not be fed properly.



   Note

   • Do not load sheets of paper higher than the load limit mark (J).
   • Keep the paper stack height below the tabs (K) of the paper guides.

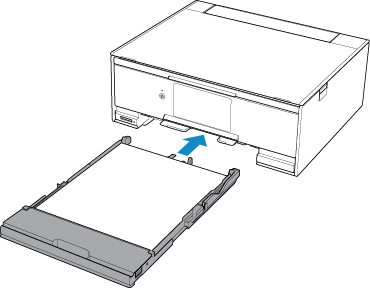

8. Mount the cassette cover, and then insert the cassette into the printer.

   Push the cassette into the printer until it stops.

   After inserting the cassette into the printer, the paper information registration screen for the cassette is displayed on the touch screen.

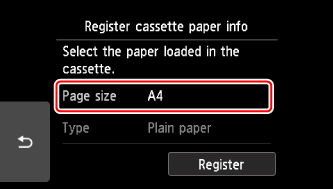

9. Select the size and type of the loaded paper in the cassette at Page size, then select Register.



When printing starts, the operation panel is opened and the paper output tray is pulled out automatically.

Note

• When printing, select the size and type of the loaded paper on the print settings screen of the operation panel or the computer.

  • To prevent incorrect printing, this printer has a function that detects whether the information set for the paper loaded in the cassette matches the paper settings. Before printing, make paper settings in accordance with the paper information. When this function is enabled, an error message is displayed if these settings do not match to prevent incorrect printing. When this error message is displayed, check and correct the paper settings.
